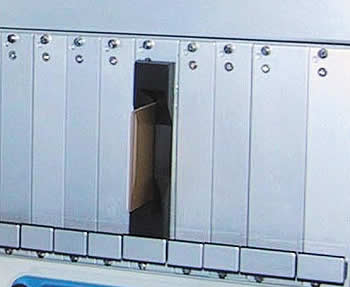

PLANT LINK S.L. SECURITY - SMART CARD READER CARD

COMMON FEATURES OF THE SMART CARD READER

  • Ensures that only qualified operators in possession of a smart card can operate the equipment
  • The card is able to read a smart card and enable or disable equipment functionality as a consequence
  • DIN 41612 standard Eurocard connector (48 pins)
  • Standard Eurocard width - 5HP (card width = 25.4mm).
  • Standard Eurocard format - 3U (pcb board size = 100mm x 160mm. Card size overall = 128mm x 175mm).
  • Can be controlled from a PC using Plant Link S.L. PC Interface Cards such as PL-RS232, PL-USB or PL-Parallel Port
  • Designed & manufactured by Plant Link S.L.
  • Compatible with all cards in the Plant Link Eurocard range.
  • Employs Plant Link Test Language for control.
  • Drivers available for: LabVIEW, LabWindows/CVI, Visual Basic, Visual C++
  • Cards can be extracted from the front of the equipment for inspection or replacement.
  • Internal microcontroller to perform card functions, diagnostics and communicate with other cards in the Eurocard system.


PL-SEC01

  • Security Smart Card Reader Card

PL-SEC01-CAN

  • Security Smart Card Reader Card
  • This card can be controlled using any CAN communication device
