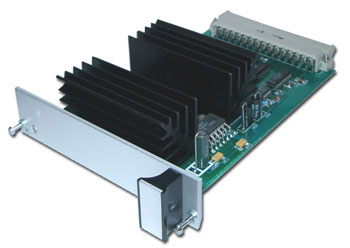

COMMON FEATURES OF THE VARIABLE POWER SUPPLY CARD FAMILY

• Variable voltage supply. Output voltage programmable via Plant Link Test Language
• Variable current limit. Output current limit programmable via Plant Link Test Language
• Thermal protection against short circuits and overloads.
• DIN 41612 standard Eurocard connector (48 pins)
• Standard Eurocard format - 3U (pcb board size = 100mm x 160mm. Card size overall = 128mm x 175mm).
• Can be controlled from a PC using Plant Link S.L. PC Interface Cards such as PL-RS232, PL-USB or PL-Parallel Port
• Designed & manufactured by Plant Link S.L.
• Compatible with all cards in the Plant Link Eurocard range.
• Employs Plant Link Test Language for control.
• Drivers available for: LabVIEW, LabWindows/CVI, Visual Basic, Visual C++
• Cards can be extracted from the front of the equipment for inspection or replacement.
• Internal microcontroller to perform card functions, diagnostics and communicate with other cards in the Eurocard system.


PL-S145V

• Power Supply Card. Programmable from 0 to 14 Volt, 0 to 5 Amp
• Maximum rating: 14V / 5A.
• Standard Eurocard width - 10HP (card width = 50.8mm).

PL-S181V

• Power Supply Card, Programmable from 0 to 18 Volt, 0 to 1 Amp
• Maximum rating: 18V / 1A.
• Standard Eurocard width - 4HP (card width = 20.32mm).

PL-S145V-CAN

• Power Supply Card. Programmable from 0 to 14 Volt, 0 to 5 Amp
• Maximum rating: 14V / 5A.
• This card can be controlled using any CAN communication device.
• Standard Eurocard width - 10HP (card width = 50.8mm).

PL-S181V-CAN

• Power Supply Card, Programmable from 0 to 18 Volt, 0 to 1 Amp
• Maximum rating: 18V / 1A.
• This card can be controlled using any CAN communication device.
• Standard Eurocard width - 4HP (card width = 20.32mm).
